Product Description

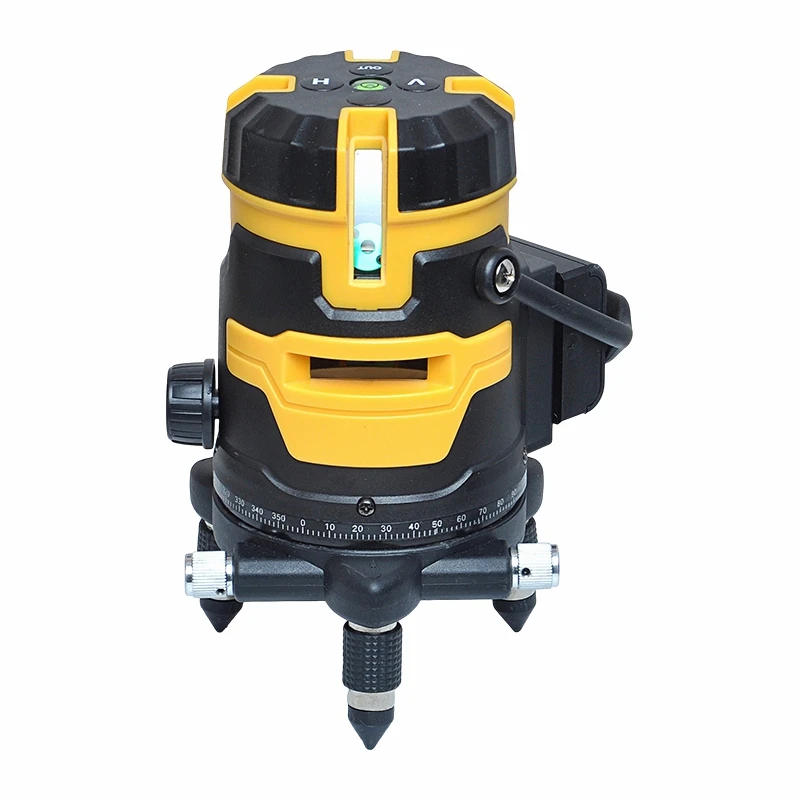

This multi-function laser level is a 3D three-dimensional laser level integrating multi-dimensional projection functions. It adopts a three-sided 360° panoramic projection design, which can output multiple laser lines at the same time to form a three-dimensional reference grid covering the ground, walls and ceiling. One setup can complete the line setting of most construction surfaces of the whole house. The product is equipped with a high-brightness green laser module, with clear 532nm wavelength light, and an indoor visible distance of about 20 meters in bright environments. With the pulse mode and dedicated receiver, it can expand the working range and meet the indoor construction needs of home decoration and small shops.
The instrument has a built-in precision pendulum automatic self-leveling system, which can quickly level within ±4° and automatically alarms when exceeding the range. Novice workers can also get started quickly, reducing construction errors caused by improper operation. The body adopts a modular window design, and three projection surfaces are independently controlled. The ground line, wall line or ceiling line can be turned on separately, or freely combined according to construction needs. Turning on the corresponding laser lines as needed can extend battery life and reduce light interference.
The bottom is equipped with a 360° rotary fine-tuning base, which can realize angle adjustment with a fine-tuning knob, making alignment more convenient when paving tiles and making internal and external corners. The body adopts IP54 dust and water resistance structure, with a fully covered TPE soft rubber anti-collision layer on the periphery, which can withstand 1.5-meter drop impact and adapt to the dusty and humid environment of decoration sites. It is equipped with a large-capacity lithium battery as standard, with a battery life of 6-8 hours in full-brightness mode, and comes with a dedicated charger, while being compatible with power bank power supply. The 1/4-inch standard threaded interface at the bottom is compatible with various accessories such as tripods, lifting platforms and magnetic wall mount brackets, and can flexibly switch operation modes.
Specifications
|
Parameter |
Technical Specification |
|
Laser Type |
Green (Red optional) |
|
Laser Wavelength |
532nm (Green) |
|
Laser Class |
Class Ⅱ, output power ≤1mW |
|
Projection Configuration |
12 lines, 3D three-sided 360° |
|
Measurement Accuracy |
±2mm / 10m |
|
Self-Leveling Range |
±4° |
|
Self-Leveling Time |
＜3 seconds |
|
Indoor Visible Distance |
20m |
|
Battery Specification |
Large-capacity lithium battery |
|
Battery Life |
6-8 hours (full-brightness mode) |
|
Protection Rating |
IP54 dust and water resistance |
|
Drop Resistance Height |
1.5 meters |
|
Operating Temperature |
-10℃ ~ 45℃ |
|
Base Thread |
1/4-inch standard interface |
|
Net Weight |
Approx. 0.75kg |
It is a common measuring tool in the interior decoration and installation industry, and is suitable for whole-house decoration, kitchen and bathroom decoration, whole-house custom installation and other scenarios. In tiling operations, the 360° ground line can be used for floor tile paving and slope finding, the wall vertical line is used for wall tile internal and external corner alignment, and the ceiling line is used for ceiling elevation positioning; in woodworking operations, it can be used for wardrobe installation leveling, wooden door frame vertical calibration, and ceiling keel layout; in water and electricity operations, it can be used for the same elevation positioning of switches and sockets, horizontal arrangement of water pipes, and alignment of conduit directions. It is also suitable for fine operations requiring multi-dimensional references such as background wall installation, integrated ceiling construction, and aluminum alloy door and window installation.
Factory Strength
We are a manufacturing factory with 11 years of experience in laser level manufacturing, with stable delivery capacity for bulk orders. The factory is equipped with an R&D technical team, which can carry out customized development according to customer technical drawings or physical prototypes. The appearance structure and circuit algorithm can be adjusted on demand. At present, we have formed a complete product matrix with different positioning. The production workshop implements a standardized management system and is equipped with conventional assembly lines and laser debugging stations to ensure the consistency of product performance and the stability of accuracy. The products have passed a number of international certifications, are exported to many countries and regions, and have foreign trade supply and service capabilities.
Quality Control
We have established a full-process quality control system, setting up multiple quality inspection links from component incoming inspection to finished product delivery. For multi-line products, we have formulated corresponding quality inspection standards: laser modules undergo full inspection of basic parameters before entering the factory; each process is inspected online by quality inspection personnel during assembly; after the finished product is assembled, it undergoes multiple inspections such as accuracy calibration, high and low temperature cycle test, drop test, battery life test, and button life test. The orthogonality, coincidence and line width uniformity of the three-sided laser lines need to be verified one by one to ensure the spatial accuracy of the three-dimensional reference grid. A full inspection of finished products is carried out before packaging, and each device comes with an accuracy test report. We support customers to entrust third-party institutions to conduct pre-shipment inspection, and all products come with a one-year warranty service.
After-Sales Service
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for conventional stock models is 200 units, supporting mixed colors and configurations in the same order; for customized development, the minimum order quantity is 1000 units, which can be communicated according to specific needs.
Q: Can you provide samples for testing first?
A: We can provide samples for function and accuracy testing and confirmation. The sample shipping fee is borne by the customer, and a formal order will be signed after confirmation and satisfaction.
Q: What is the general production cycle for standard orders?
A: The production cycle of 1000-3000 units of conventional standard products is 30-45 days. The specific time can be negotiated and adjusted according to the order volume and production schedule, and the delivery cycle of repeat orders will be shorter.
Q: What trade terms and payment methods do you support?
A: Currently, we support EXW and FOB trade terms. For conventional models, 30% advance payment and 70% balance paid before shipment; for customized models, the sample making and mold opening fee shall be paid first, 50% advance payment shall be paid after sample confirmation, and 50% balance shall be settled before shipment after mass production is completed. We support settlement in a variety of mainstream currencies.
